36mm Planetary Gear Motor 24V 36JXE30/36ZWNP40
Dimensions
Brushless Motor Technical Data
TYPE | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated torque mN.m | Rated speed r/min | Rated current mA | Rated Power W |
36ZWNP40-1240 | 4 | 3 | 12 | 4000 | 400 | 15 | 3000 | 850 | 4.7 |
36ZWNP40-2440 | 4 | 3 | 24 | 4000 | 200 | 20 | 3000 | 550 | 6.3 |
Brushless Gear Motor Technical Data
36ZWNP40-1240 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 |
No-load speed r/min | 1078 | 772 | 286 | 211 | 148 | 78 | 56 | 40 | 29 | 21 | 15 | 11 |
Rated speedrAnin | 809 | 579 | 214 | 158 | 111 | 59 | 42 | 30 | 22 | 16 | 11 | 8.1 |
Rated torqueN.m | 0.05 | 0.07 | 0.17 | 0.23 | 0.33 | 0.56 | 0.78 | 1.1 | 1.5 | 1.8 | 2.6 | 3 |
Max. permissible load in a short timeN.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 |
36ZWNP40-2440 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 |
No-load speed r/min | 1078 | 772 | 286 | 211 | 148 | 78 | 56 | 40 | 29 | 21 | 15 | 11 |
Rated speedrAnin | 809 | 579 | 214 | 158 | 111 | 59 | 42 | 30 | 22 | 16 | 11 | 8.1 |
Rated torqueN.m | 0.067 | 0.093 | 0.23 | 0.31 | 0.44 | 0.74 | 1.0 | 1.5 | 2.0 | 2.5 | 3 | 3 |
Max. permissible load in a short timeN.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 |

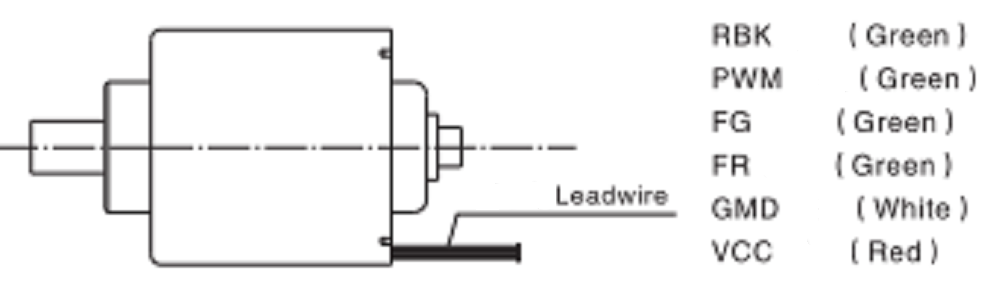

Wire Diagram BLDC Motor Wiring Diagram
Vcc connects positive wire, GND connects negative wire.
FR is signal wire for differentiating CCW and CW. Motor rotation is CCW when FR is Disconnected or connected with 5V. Motor rotation is CW when FR is connected with GND.
FG is wire for speed signal, motor outputs 2 quare signals per revolution.
PWM input speed control signal, connect +5V for motor full-speed working, while connect GND for stopping.
BRK is braking signal input, connect GND for braking.
BLDC Motor Wiring Diagram
